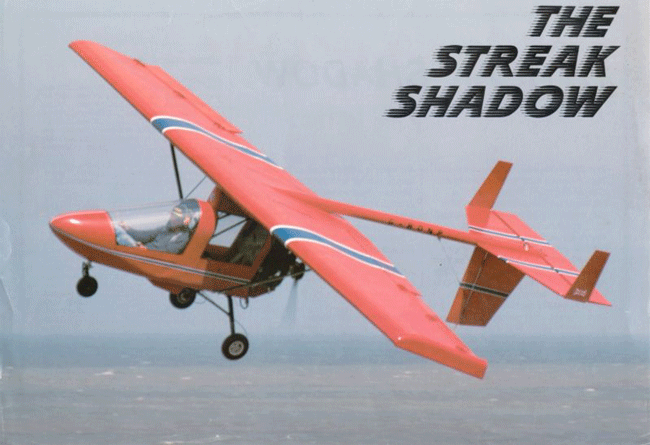

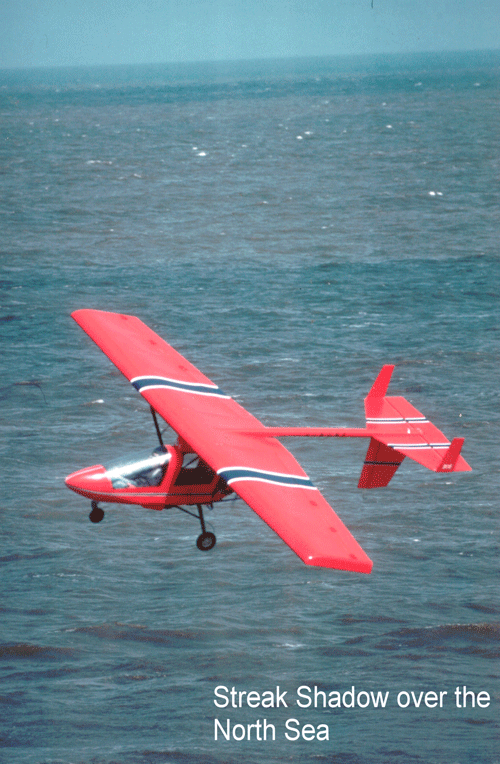

The Streak Shadow has been developed from the award winning series produced Shadow Microlight. Categorised as a homebuilt amateur produced aircraft it is designated as a 'Ultralight' in Europe and 'Experimental' in the U.S. The new design of wing coupled with light airframe weight and the powerful engine gives this aircraft OUTSTANDING performance. Staggering acceleration and exhilarating sustained climb rates are combined with 100 mph hands off cruise. CFM's new wing retains the inherant saftey with its aerodynamics of no 'defined' stall and is very spin resistant. With a total fuel capacity of 12 imperial gallons (14.4 U.S. Galls) and endurance of approximately five and a half hours at economic cruise a range of about 400 statute miles is normal.
If a trailer is used for transport the Streak can be readied for flight in less than 10 minutes. Take off and landings can be accomplished from runways, sports grounds and meadows. Fun combined with safety are the key factors when flying a Streak Shadow. .
AFTER ALL, SEEING IS BELIEVING.
STREAK SHADOW SPECIFICATION
PERFORMANCE:
Never Exceed Speed vne .................. 140 mph.....225 kph
Maximum Level Speed...................... 121 mph...... 195 kph
Cruise - Economic 50%...................'.....75 mph......121 kph
Max Continuous 80% ......... 100 mph...... 161 kph
Minimum Speed MTOW .......................31 mph.......50 kph

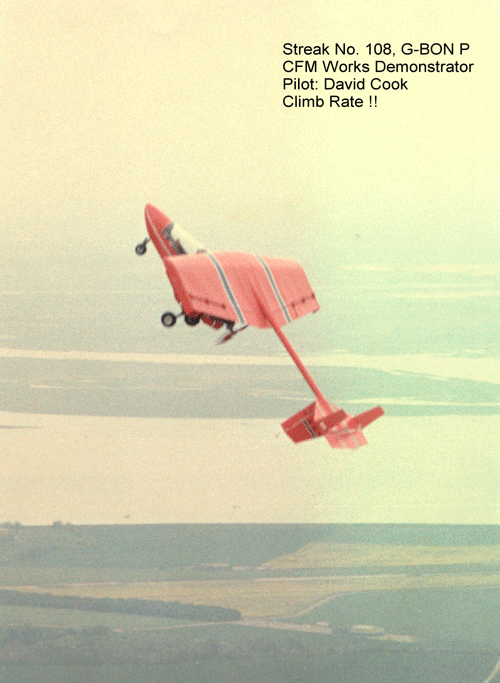

Climb Rate - Solo .......1600-1800 ft/min.....488-549 m/min
- Dual........ 1100-1300 ft/min.....335-396 m/min
Ceiling ...............................................29,000 ft.......8839 m
Fuel Consumption :
Economic Cruise 50% ....................2.1 gall/hr.......9.5 Itr/hr
Max Continuous Cruise 80%...........3.3 gall/hr....... 15 Itr/hr
Crosswind Capability ................................25 knots at 90°
DIMENSIONS:
Wing Span .............................................28 ft..........8.53 m
Area ................................................ 140sq ft.........13 sq m
Length....................................................2V..............6A m
Height.....................................................5'9".. ........1.75m
Empty Weight.....................................388 Ib .......... 176 kg
Max. Take Off Weight .........................900 lb...........408 kg
Engine .....................................................Rotax 532 64HP
...............................................Twin Cylinder Liquid Cooled
Propeller.....................................52"x55"3-Bladed Wood
Fuel Capacity ...................................12 Imp gall........54 Itr
Controls .............................................................Dual Stick
........................................................................Dual Rudder
.......................................................................Dual Throttle
...................................................................................Flaps
.................................................................................Brakes
Rigging .....................................................Separate Wings
..................................................Removeable Tail Surfaces
......................................................... 10 minutes Rig/De-rig
Options ...........................................................Electric Trim
................................................................Additional 9.5 gall
.................................................................(43 Itr) Fuel Tank
