Glider Manuals
McBroom Sailwings

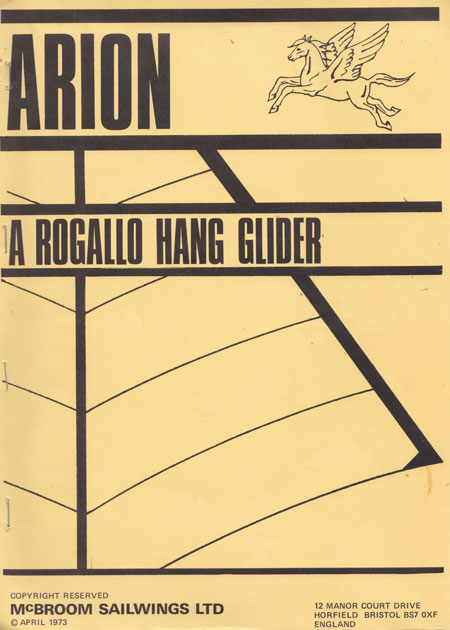

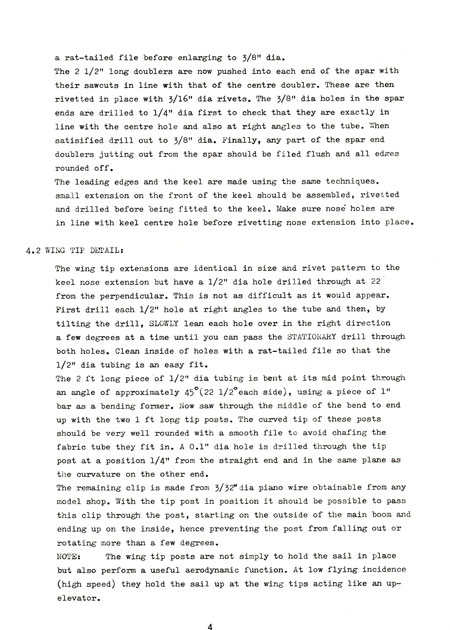

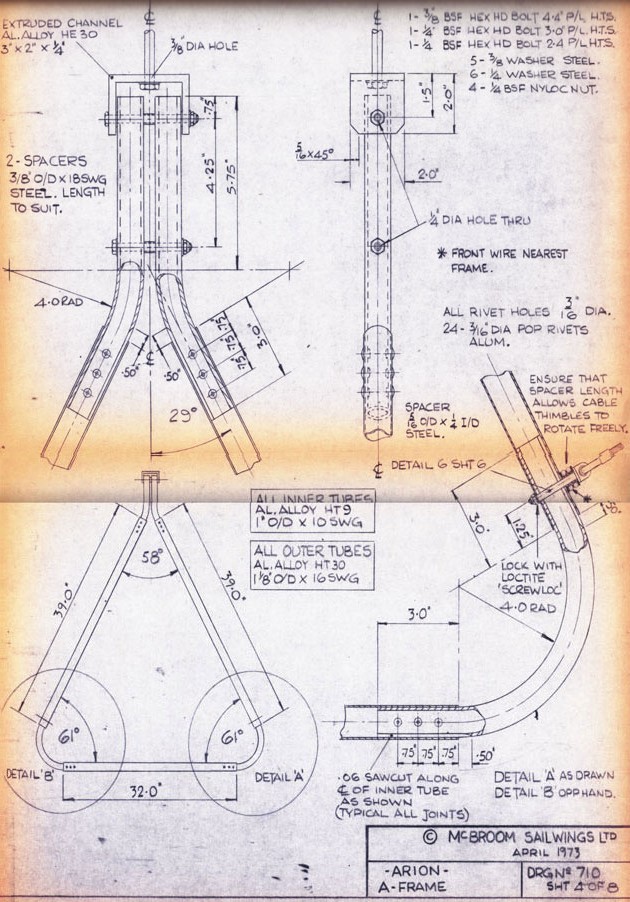

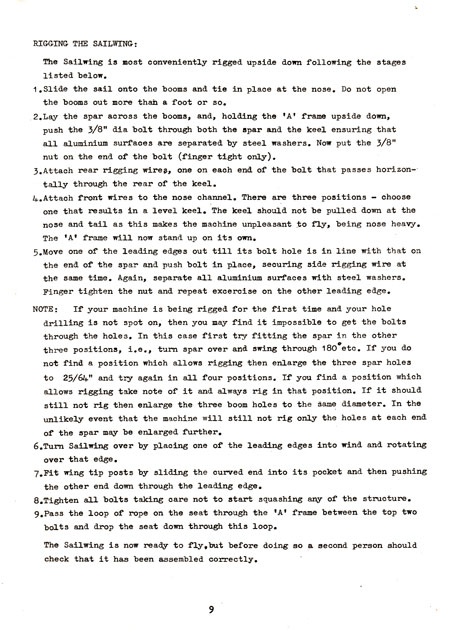

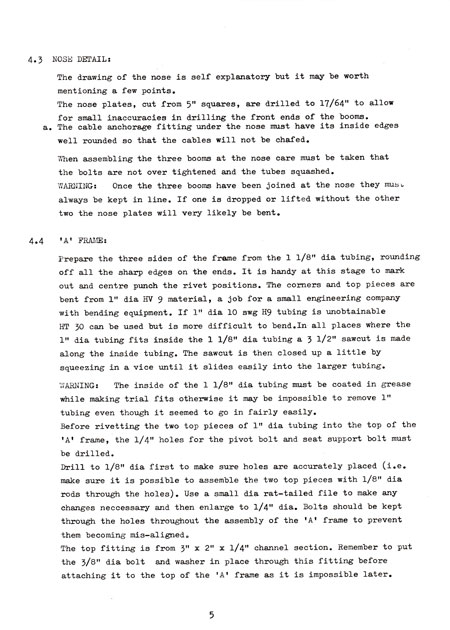

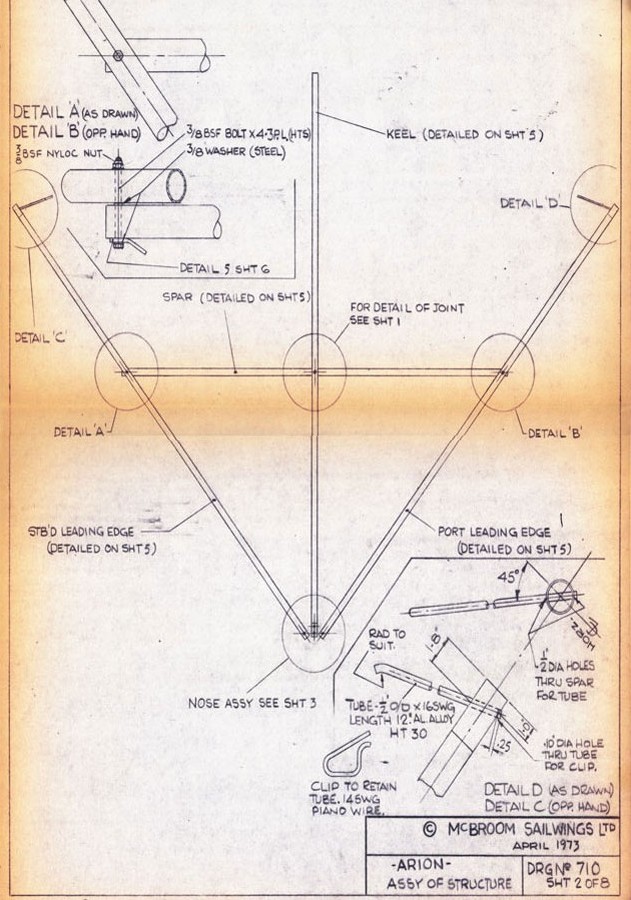

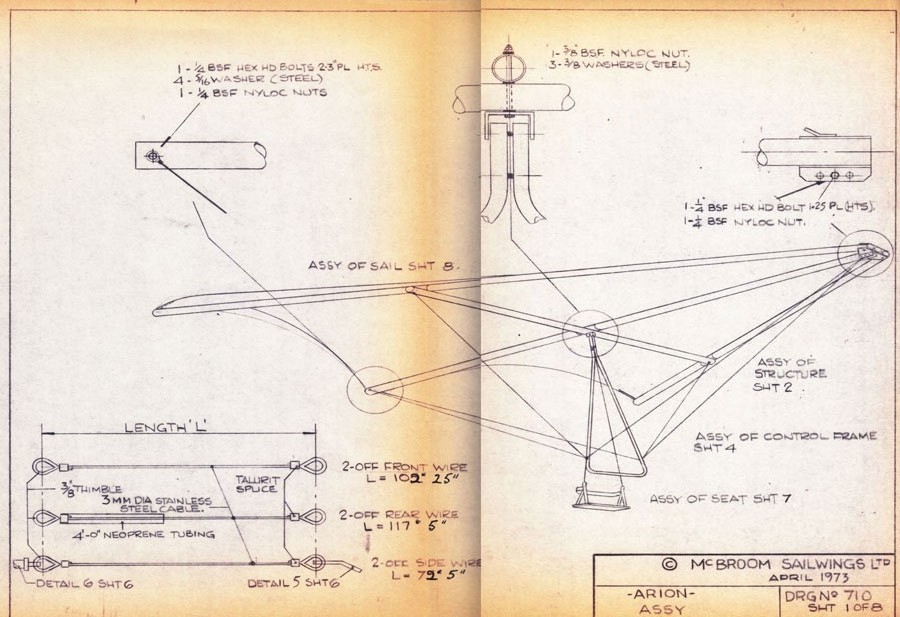

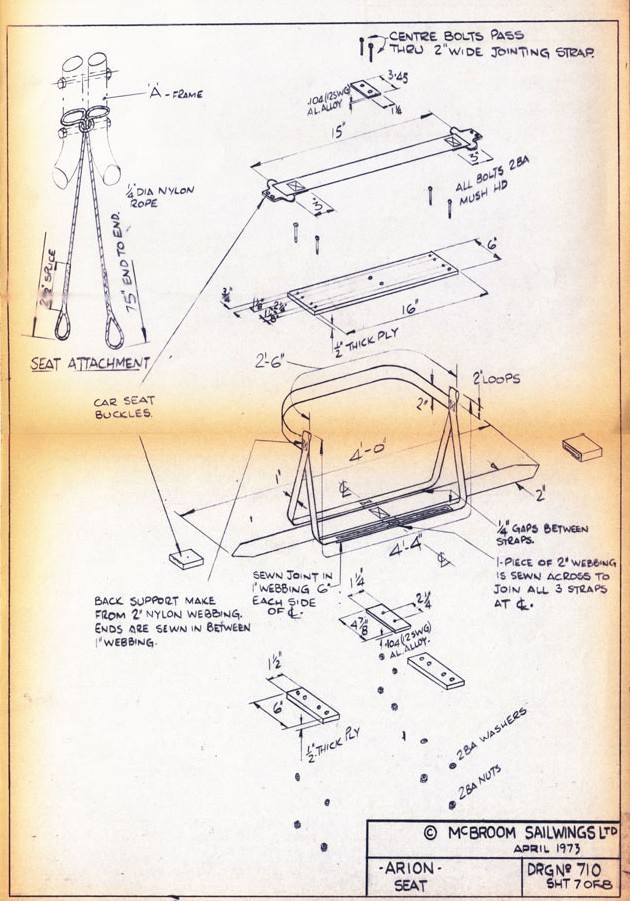

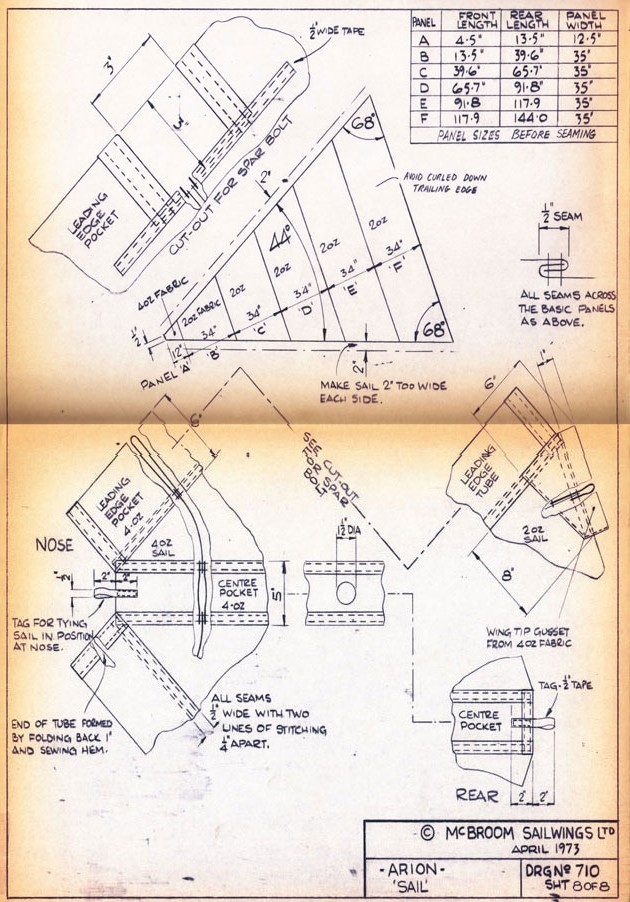

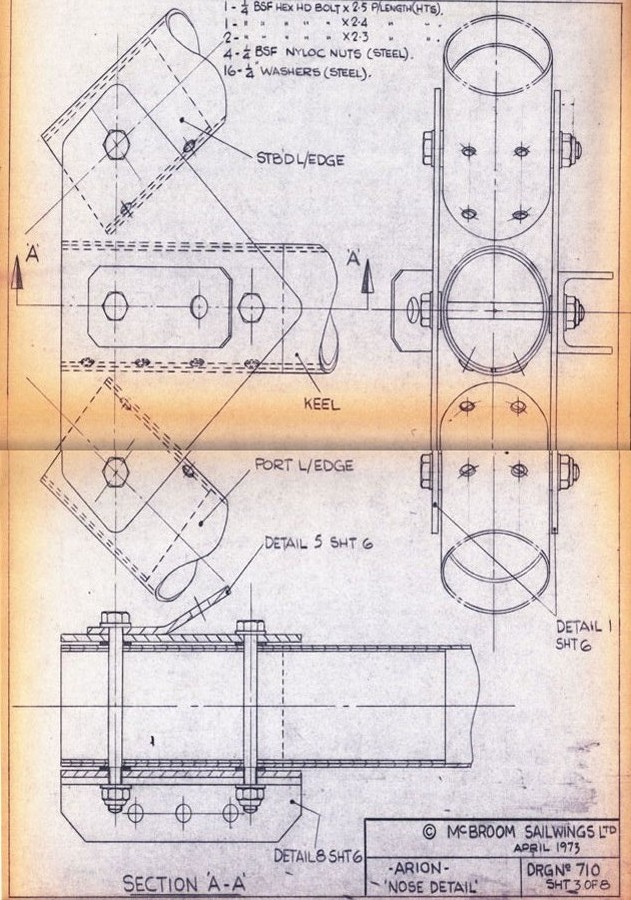

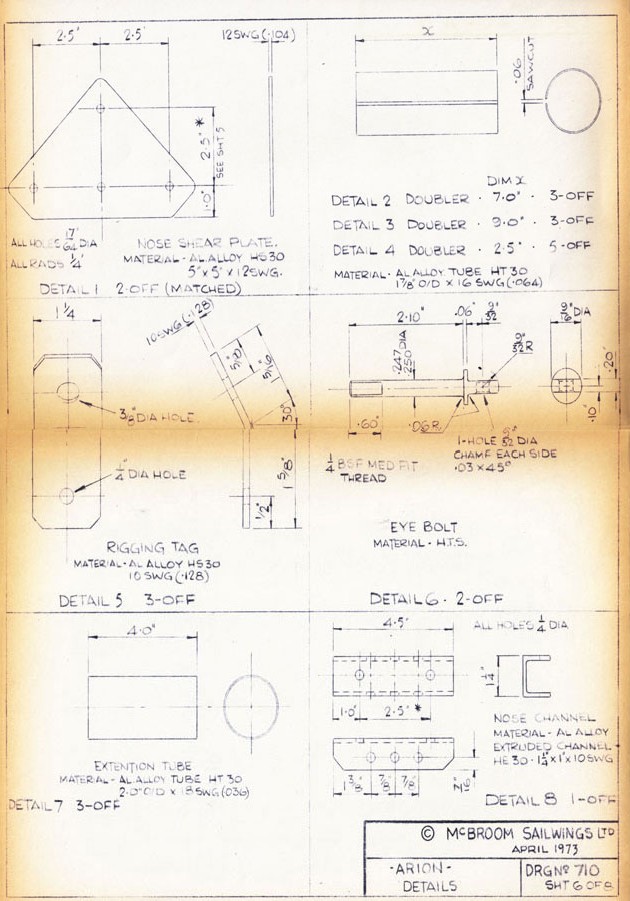

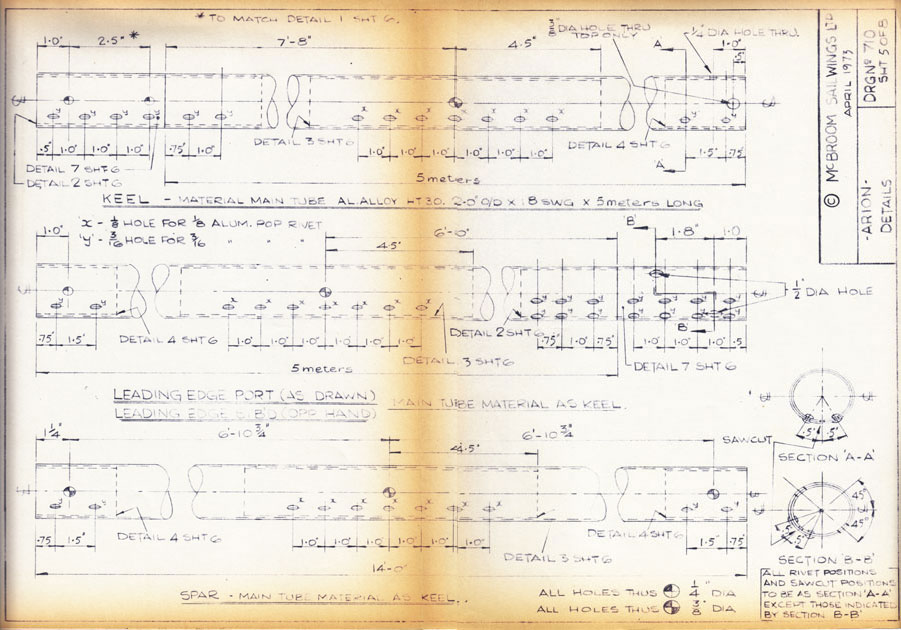

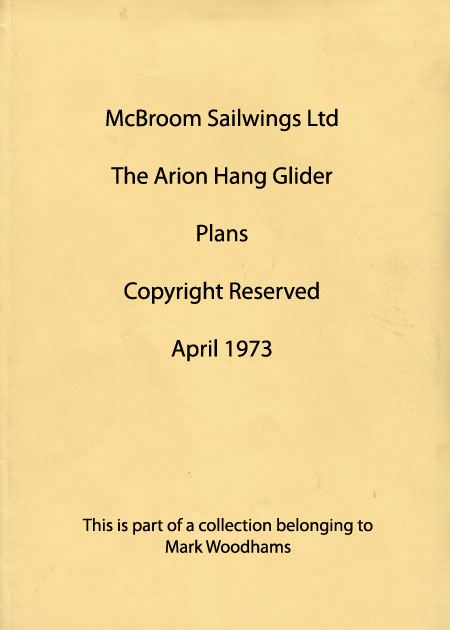

The Arion Plans and Construction Instructions
April 1973
Updated Arion Plans released in June 1974
To enlarge click onto photo repeat to shrink
 |
|
... |
|
||
| 1 | 2 |
|
... |
|
... |
|
... |
|
... |
|
... |
|
||||||
| 3 | 4 | 5 | 6 | 7 | 8 |
From Mark Woodhams

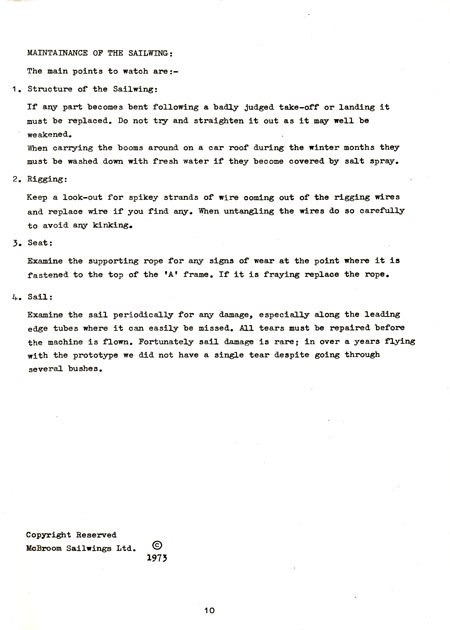

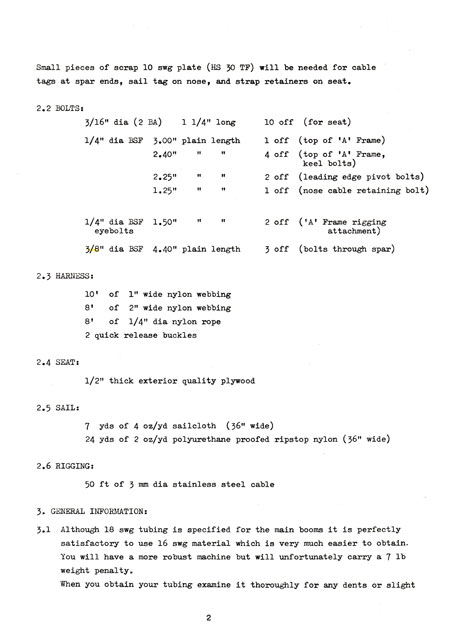

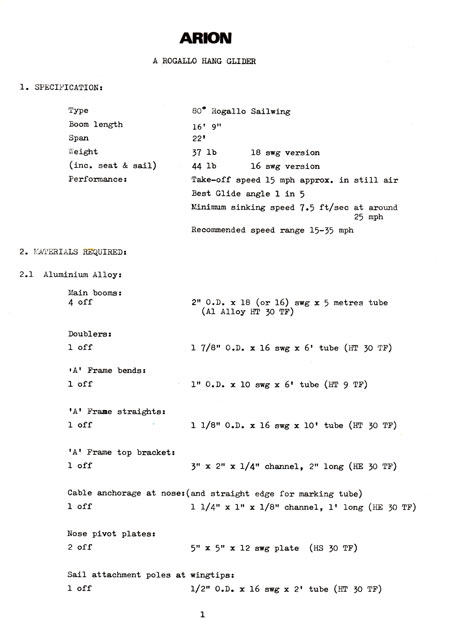

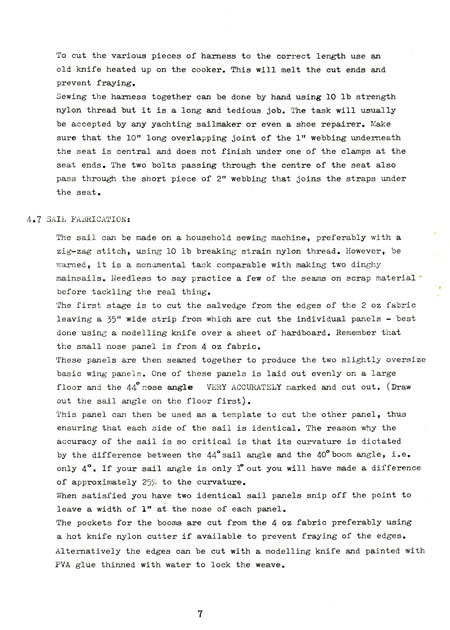

Construction Details
|
... |
|
... |
|
... |
|
... |
|
... |
|
||||||
| 1 | 2 | 3 | 4 | 5 | 6 | |||||||||||
|
|
|
|
|
|
|||||||||||
| 7 | 8 | 9 | 10 | 11 | 12 |
From Brian Griffiths
